WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > JIG (Options)
JIG (Options)
Tank (for Coating Liquids) Vibration Isolator Windshield Box Circulation System
for Coating Liquids
Jigs

Tank (for Coating Liquids)

Tank size can be specified freely.

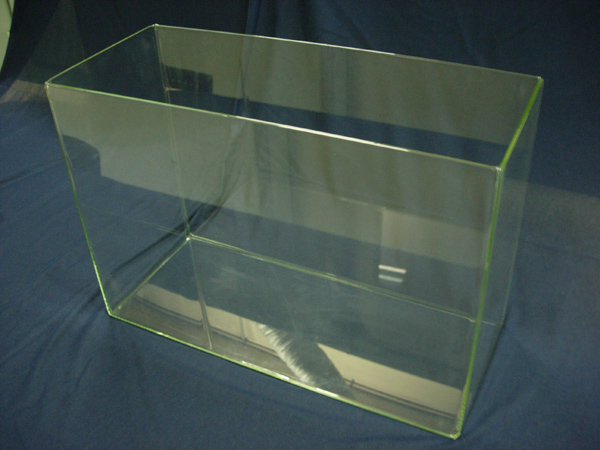

Glass Material


PMMA (Poly Methyl Meth Acrylate)

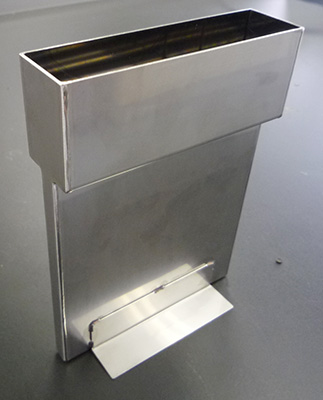

Stainless Steel (JIS SUS304)



Material of Stainless Steel (Japanese Industrial Standards [JIS]: SUS304)

It is the tank with the cover which is able to seal up after work end.

Tank of Polytetra Fluoro Ethylene


Glass Material (Quartz / TEMPAX)



Transparent Polyvinyl Chloride Material


Material of Stainless Steel (Japanese Industrial Standards [JIS]: SUS304)



Vibration Isolator

Exclusive Vibration Isolating Table

It is the exclusive Vibration Isolating Table for SDI Brand dipcoaters.


Vibration Isolating Table - A

It is the compact & desk top type Vibration Isolator with Air Suspension adapted to use in the clean room.


Vibration Isolating Table - B

It is the Vibration Isolator to be able to easily treat like as the accessories of the precision instrument.



Vibration Isolating Table - C

Desk Top Type Vibration Isolator integrated with high-performance Vibration Isolating System

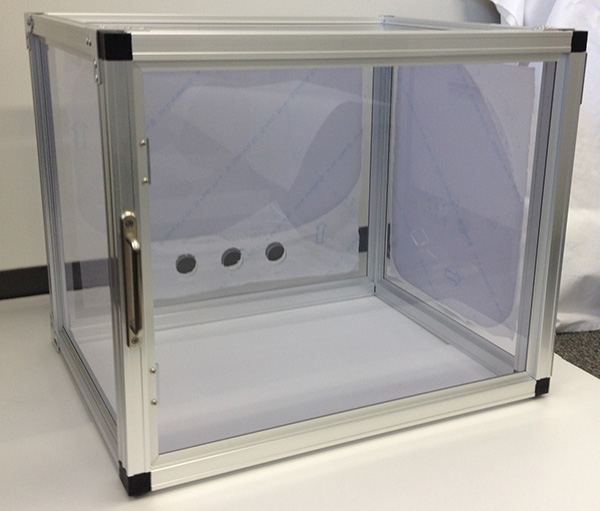

Windshield Box

Windshield Box + Vibration Isolating

We integrated the Vibration Isolating Board (our original) with the Windshield Box together to exclude environmental influence (air conditioning and vibration). It becomes essential device for the test at the low speed range.

Glove Box

This is a Vacuum Glove Box made with acrylics. It can perform gas substitution effectively with exhausting by vacuum pumps.

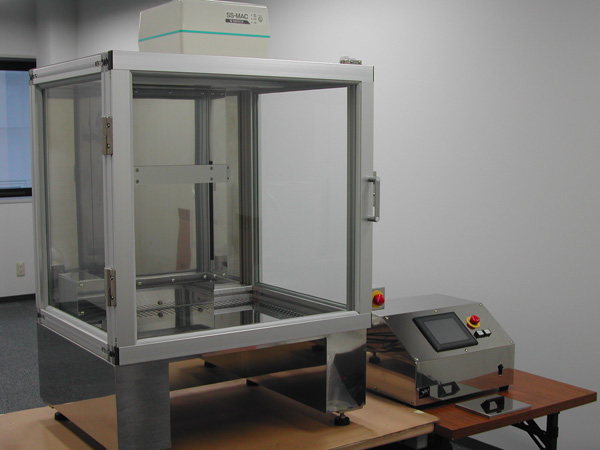

Clean Box

This is the one set type device with Clean Box and dipcoater. HEPA Unit is equipped at the upper part of the device. The equipments for gas analyzers, etc. are also possible.


Circulation System for Coating Liquids

The Liquid Temperature Control also can be done with attaching the Heat Exchanger in the Circulation System.

Circulating Equipment A

This is the system to keep Coating Liquid at the constant surface level and to remove impurities by circulating Coating Liquid with filtering.

Circulating Equipment B

This is the system to keep Coating Liquid at the constant surface level and to remove impurities by circulating Coating Liquid with filtering.


Jigs

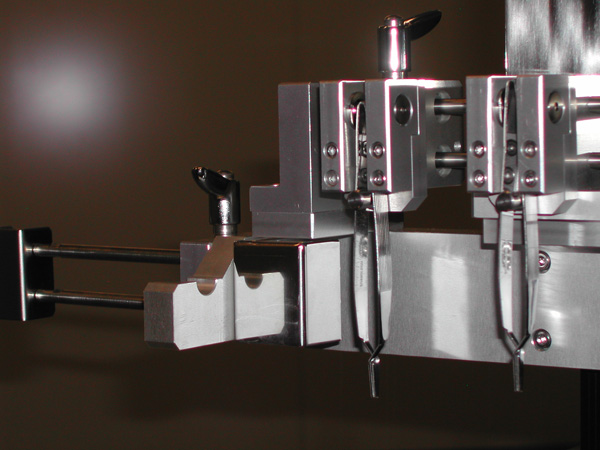

Jig for Chuck Part A

Multi number of fine specimens such as slide glass, etc. can be processed at the same time.

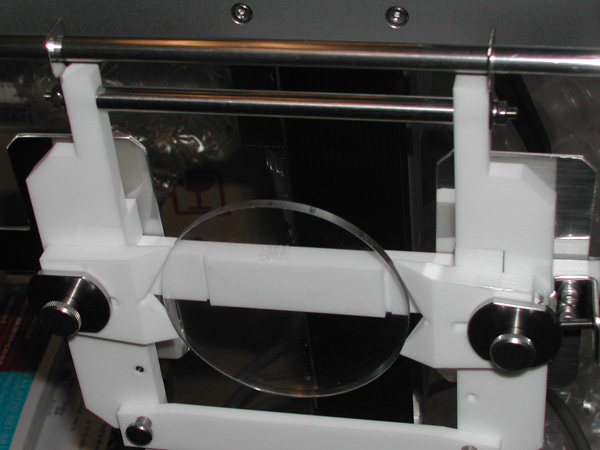

Jig for Chuck Part B

It is the most suitable for the coating objects such as lenses.

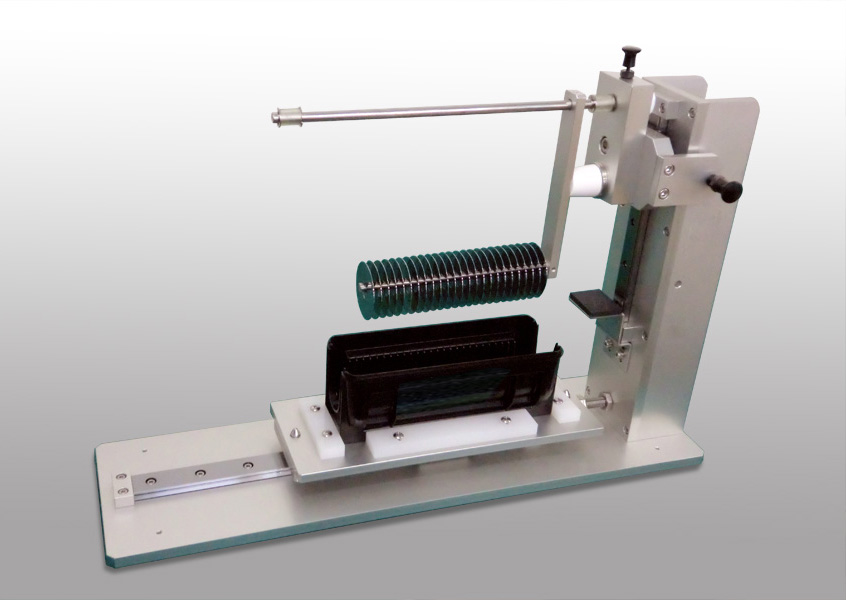

Jig for Chuck Part D

This is the Jig to be available the coating for 25 pieces of Disk at one time. Sizes and the processing numbers of disks can be specified freely.
