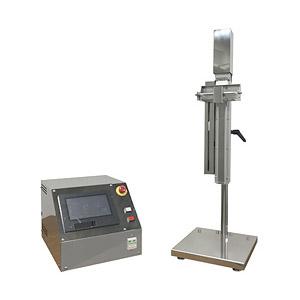

Linear Dip R Coater　LD-1304-S2

Desktop device for experiments / research / development Specifications /

This is the optimum dipcoater (Dip Coating Device) for totally new Dip Coat (Dip Coating) with changing speed linearly. Variable range of changing speed is from 0.1 mm/sec.. to 200 mm/sec.

This is the revolutionary dipcoater to Dip Coat (do Dip Coating) with changing the speed linearly and easily changing the thickness of film smoothly by using our totally new controlling method of raising-up of the work. Of course, other functions carried on conventional models also possible to be changed by one touch.

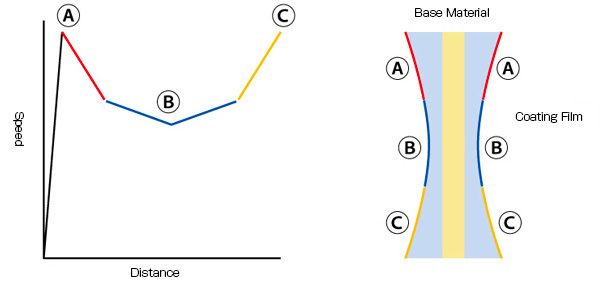

* [Characteristics of dip coater]

Main Specifications
Stroke	300mm
Minimum Speed (Min.)	0.1mm/sec.
Maximum Speed (Max)	200mm/sec.
Operating Method	Touch Panel
Screen Indication Language	Japanese / English
Number of designation points for Transaction Speeds	16 Points
Number of designation points for Stop Positions	16 Points
Number of designation points for Stopping Time	16 Points
Consecutive Driving Mode	Equipped
Manual Driving Mode	Equipped
Number of Memorized Programs	8 Programs
Monitoring Function: Present Speed	Equipped
Monitoring Function: Present Position	Equipped
Monitoring Function: Residual Time	Equipped
Repetition Driving	Not Equipped
Standard Clip	Material: Stainless Steel
Utility	AC100V,400VA
Weight Capacity	1kg
Maximum Processing Size (mm)	H:300mm
Linear Driving Mode	Equipped
Equipment Dimension (mm): not including projections	W:270 D:315 H:1066
Control Box Dimension (mm) : not including projections	W:303 D:390 H:267

Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
