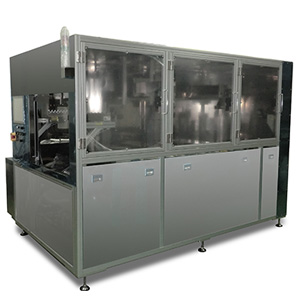

Semi-Automatic Dip Coater SA-1503-S1

Mass production / automatic device specifications

This device is the semi-automatic dip coater (dip coating) equipment which can perform to do dip coat, drying and cooling continuously for plural application objects under the clean environment. It is the most suitable for the mass-production as the plural application objects can be coated at the same time.
Main Specifications
Stroke 550mm
Object SizeW:300×H:350mm t 20
Object MaterialPolycarbonate, Metal, Film, etc.
Dip SpeedFrom 0.1mm/sec. to 99.9mm/sec.
Circulation Device of Coating LiquidIncluding
Temperature Control of Coating LiquidIncluding
Filter MeshIncluding
Drying DeviceIncluding
Dry Temperature100 Centigrade
HEPA (High Efficiency Particulate Air Filter) UnitIncluding
Device Dimension (approx. size)W:2703×D1603:×H2075:mm
