WHAT IS THE DIP COATER (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > Instances of Dip Coating
Instances of Dip Coating
An Image of Array

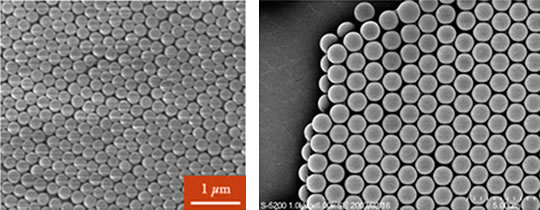

A Monolayer Array of Silica
A Dual Array of Polystyrene

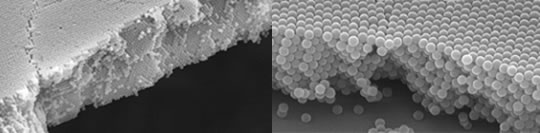

A Multi Array of Polystyrene

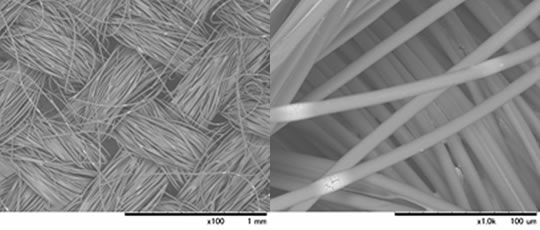

A Coating with Titanium Oxide for Carbon Fiber Cloth

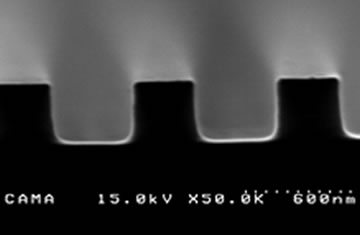

A Coating for Infinitesimal Structured Solid Object

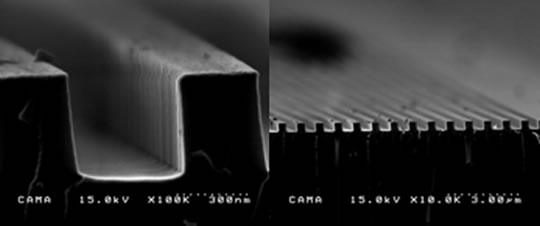

A Coating with Parting Agent for Quartz Mold L&S 400nm

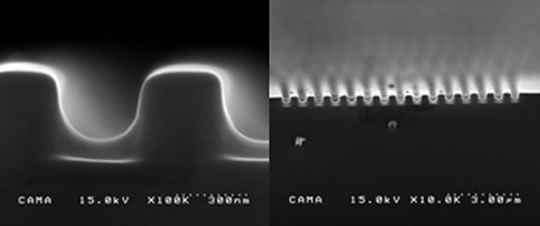

A Coating with Parting Agent for Quartz Mold L&S 350nm

A Coating with Parting Agent for Quartz Mold after Rinsed L&S 350nm
A Resist for Positive Pattern
露光→現像→エッチング 回路パターン形成
  • Exposure 100mj
  • Development 1% Na2CO3, 30 centigrade, 30 sec., Spray Pressure 1.5 kg
  • Etching CuCl2 or FeCl3
  • ポジ型
    L/S 10/10(μm)
    ポジ型
    15/15
    ポジ型
    20/20

    L/S=20/20(μm)
