HOME > The Product Details > Dip coater for cylindrical base material　DT-2002

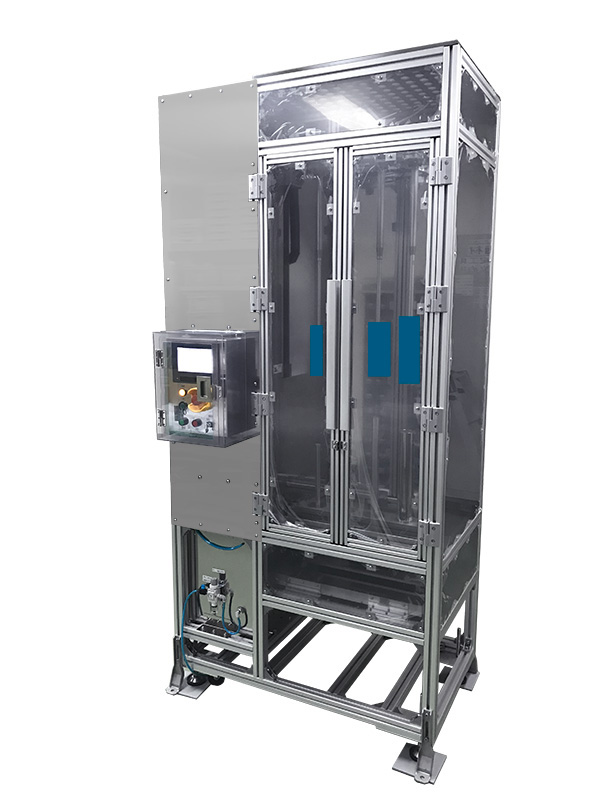

Dip coater for cylindrical base material　DT-2002

Small lot production / release agent application device specifications /

This device is a device that simultaneously grips and applies four cylindrical substrates with an air picker. The air picker is replaceable and can be used to change the size of the base material.

Main Specifications
Stroke	550mm
Object Size	φ20~φ60,L:220~400mm
Object Material	Aluminum, glass
Dip Speed	0.1~60mm/sec
Circulation Device of Coating Liquid	Not Equipped
Temperature Control of Coating Liquid	Not Equipped
Filter Mesh	Not Equipped
Drying Device	Not Equipped
Dry Temperature	Not Equipped
HEPA (High Efficiency Particulate Air Filter) Unit	Not Equipped
Equipment Dimension (mm) [approximate]	W:1100 D:650 H:2360mm
