WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > Medium Coating Equipment DT-1104
Medium Coating Equipment

dipcoater of Specifications with Clean Environment Zone / Medium Coating Equipment

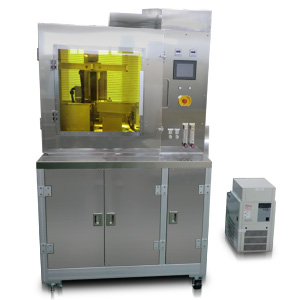

Medium Coating Equipment DT-1104

This Device is the Dip Coating Equipment with Filtering Circulation Mechanism of Coating Liquid to Dip Coat on Disks and Wafers. It can perform to Dip Coat (do Dip Coating) for a large quantity of disks at one time with using Jigs. Also Sub-tank is set up together to be available the testing of a little Dip Coating Liquid. This is the dipcoater Equipment which is reflected by SDI’s techniques about Dip Coat (Dip Coating).

Main Specifications
Stroke 219mm
Object Size 1.8, 2.5 and 3.5 inches Disks
Object Material Disks & Wafers
Dip Speed from 1 micro m/sec. to 40 mm/sec.
Circulation Device of Coating Liquid Equipped
Temperature Control of Coating Liquid Equipped
Filter Mesh 0.05 micro meter (um)
Drying Device Not Equipped
Dry Temperature Not Equipped
HEPA (High Efficiency Particulate Air Filter) Unitd Equipped
Equipment Dimension (mm) [approximate] W:1404×D:900×H:1940mm
