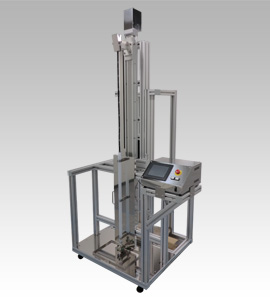

dipcoater for Long Sized Object　DT-1303-S1

Desktop device for experiments / research / development Specifications /

This is the dipcoater to Dip Coat (do Dip Coating) for Stick-shaped Long Object Works. A Tank is available to slide for easy hanging of work objects.

This is the dipcoater to Dip Coat (do Dip Coating) for Stick-shaped Long Object Works such as Catheter and Glass Tube, etc. A Tank will be able to slide when work objects are suspended. Also, when carrying of the equipment, top and bottom driving parts can slide down to the height of 1,500 mm from 2,100 mm of the standard height of equipment. (Tanks are sold separately.)

Main Specifications
Stroke	780mm
Minimum Speed (Min.)	1mm/sec
Maximum Speed (Max)	100mm/sec
Operating Method	Touch Panel
Screen Indication Language	Japanese / English
Number of designation points for Transaction Speeds	8 Points
Number of designation points for Stop Positions	8 Points
Number of designation points for Stopping Time	8 Points
Consecutive Driving Mode	Equipped
Manual Driving Mode	Equipped
Number of Memorized Programs	2 Programs
Monitoring Function: Present Speed	Equipped
Monitoring Function: Present Position	Equipped
Residual Time of Monitoring	Equipped
Repetition Driving	Not Equipped
Standard Clip	Material: Stainless Steel
Utility	AC100V,250VA
Weight Capacity	5kg
Maximum Processing Size (mm)	H:780mm
Linear Driving Mode	Not Equipped
Equipment Dimension (mm): not including projections	W:800 D:800 H:2100
Control Box Dimension (mm) : not including projections	W:300 D:285 H:163

Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
