WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > Semi-Automatic Dip Coater with Turning Mechanism (UL approved equipment) SA-1509UL
The Product Details

Mold Release Processor

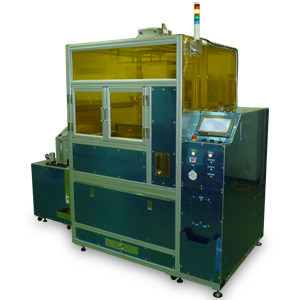

Semi-Automatic Dip Coater with Turning Mechanism (UL approved equipment) SA-1509UL

This device is the semi-automatic dip coater (dip coating) equipment which can perform to do dip coat, drying and cooling continuously for plural application objects under the clean environment. It is the most suitable for the mass-production as the plural application objects can be coated at the same time.

Main Specifications
Stroke 250㎜
Object SizeComplicated Solid Structure (200 gms or less)
Object MaterialCeramics, Metal, Resin
Dip SpeedFrom 0.1mm/sec. to 20mm/sec.
Circulation Device of Coating LiquidIncluding
Temperature Control of Coating LiquidIncluding
Filter MeshIncluding
Drying DeviceNot Including
Dry TemperatureNot Equipped
HEPA (High Efficiency Particulate Air Filter) UnitIncluding
Device Dimension (approx. size)W1481×D1102×H2087mm
