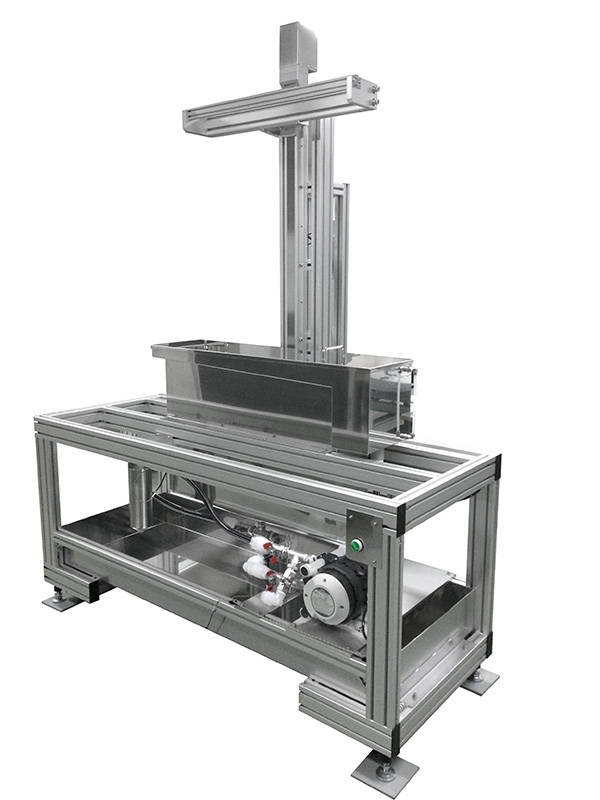

Large size dip coater DT-1911
Desktop device for experiments / research / development Specifications /
Custom dip coater for large size coats. Coating liquid circulation equipment, free replacement.
-
A dip coater that dips coats large-sized materials such as glass, acrylic, and polycarbonate at a pulling speed of 0.1 mm / sec to 60 mm / sec (variable in 0.1 mm / sec increments). The coating liquid circulation equipment can be replaced, and it is possible to handle a wide variety of coating liquids.
* Maximum stroke is up to 800mm. Ideal for applying horizontally long and curved base materials.
| Main Specifications | |
|---|---|
| Stroke | 900mm |
| Minimum Speed (Min.) | 0.1mm/sec |
| Maximum Speed (Max) | 60mm/sec |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese / English |
| Number of designation points for Transaction Speeds | 8 Points |
| Number of designation points for Stop Positions | 8 Points |
| Number of designation points for Stopping Time | 8 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| 記憶プログラム数 | 2プログラム |
| Number of Memorized Programs | Equipped |
| Monitoring Function: Present Position | Equipped |
| Residual Time of Monitoring | Equipped |
| Repetition Driving | Not Equipped |
| Standard Clip | Not Equipped |
| Utility | AC100V,15A |
| Maximum Weight Capacity | 3kg |
| Maximum Processing Size (mm) | W:1800×H:2401×D:1065mm |
| Linear Driving Mode | Not Equipped |
| Equipment Dimension (mm): not including projections | W:1800 D:1065 H:2401 |
Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
