4-axis control dip coater　DT-1609-4D1

Desktop device for experiments / research / development Specifications /

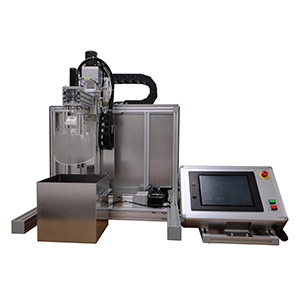

4-axis (elevation, traverse, turning, rotation) control dip coater. Compatible with all shapes of coatings. A completely new dip coater. (The tank, coating, and grip in the photo are all optional.)

Not only conventional flat plates, but also glass, acrylic, polycarbonate, etc., which have complicated shapes such as curves and protrusions, can be coated with the coating liquid by using not only raising and lowering but also turning and rotation mechanisms. A new type of dip coater that follows objects. Of course, each axis can be operated independently. (The tank, coating, and grip in the photo are all optional.)

Main Specifications
Stroke	Z-axis: 300mm, X-axis: ± 150mm
Minimum Speed (Min.)	Lifting shaft: 0.1mm: Swinging shaft: 0.1degree: Rotation 1.0degree / sec
Maximum Speed (Max)	Lifting shaft: 60mm: Swinging shaft: 10degree: Rotation 30degree / sec
Operating Method	Touch Panel
Screen Indication Language	Japanese
Number of designation points for Transaction Speeds	16 Points
Number of designation points for Stop Positions	16 Points
Number of designation points for Stopping Time	16 Points
Consecutive Driving Mode	Equipped
Manual Driving Mode	Not Equipped
Number of Memorized Programs	8 Programs
Monitoring Function: Present Speed	Equipped
Monitoring Function: Present Position	Equipped
Residual Time of Monitoring	Not Equipped
Repetition Driving	Equipped
Standard Clip	Not Equipped
Utility	AC100V,350VA
Maximum Weight Capacity	1kg
Maximum Processing Size (mm)	H:250mm
Linear Driving Mode	Not Equipped
Equipment Dimension (mm): not including projections	W:810 D:800 H:900(30kg)
Control Box Dimension (mm) : not including projections	W:435 D:85 H:300(3kg)

Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
