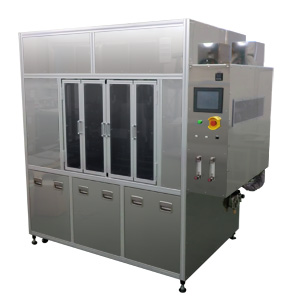

NANO IN COATER (Equipments for Mold Release Agent Coating) NIC-1208
Small lot production / release agent application device specifications /
For the purpose of the Forming Film Dip Coating with exclusive processing solution for Metal Sheets, this is the dipcoater performing the processes automatically, which are High Temperature Dry /Dipping/ Burning Dry / Washing / Ventilation Drying. This is the dipcoater Type Equipment which is reflected by SDI’s techniques about Dip Coat (Dip Coating).
| Main Specifications | |
|---|---|
| Stroke | 700mm |
| Object Size | 600 mm square |
| Object Material | Metal Sheet |
| Dip Speed | from 1 mm/sec. to 50 mm/sec. |
| Circulation Device of Coating Liquid | Not Equipped |
| Temperature Control of Coating Liquid | Not Equipped |
| Filter Mesh | Not Equipped |
| Drying Device | Equipped |
| Dry Temperature | Equipped |
| HEPA (High Efficiency Particulate Air Filter) Unit | Not Equipped |
| Equipment Dimension (mm) [approximate] | W:2000×D:1200×H:2000mm |
