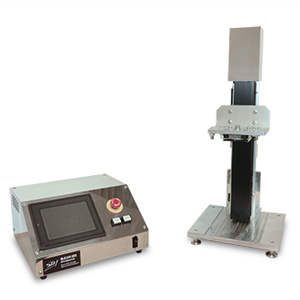

Exact Figure Tolerance dipcoater MD-1405-S1

Desktop device for experiments / research / development Specifications /

This is a new type of dipcoater which works to do dip coating with holding the jig by magnet.The parallelism degree in between the pedestal and the holding jig is 1/100.It is the most suitable to do the dip coating that is required the exact parallelism degree(figure tolerance).
Main Specifications
Stroke 300mm
Object Size 100mm angle
Object Material Wafer,Glass,Metal,Electronic parts
Dip Speed from 0.001mm/sec. to 60mm/sec.
Circulation Device of Coating Liquid Not Equipped
Temperature Control of Coating Liquid Not Equipped
Filter Mesh Not Equipped
Drying Device Not Equipped
Dry Temperature Not Equipped
HEPA(HIGH Efficiency Particulate Air Filter)Unit Not Equipped
Equipment Dimension(mm)[approximate] W:250 D:250 H:610mm
