WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > NANO IN COATER (Equipments for Mold Release Agent Coating) NIC-1103
The Product Details

Mold Release Processor

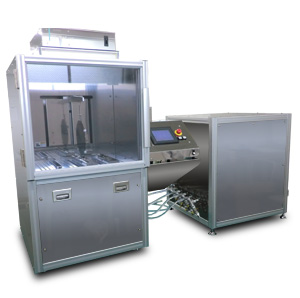

NANO IN COATER (Equipments for Mold Release Agent Coating) NIC-1103

This is the Equipment to fix Mold Release Agents on the surface of the working object through the treatments by the process of Coating Mold Release Agent on the Maximum 8 inches Wafer, then Rinse Washing and Fixation Drying. Those Treatments are done by every Working Object. This is the dipcoater Type Equipment which is reflected by SDI’s techniques about Dip Coat (Dip Coating).


Main Specifications
Stroke250mm
Object Size6inch,8inch
Object MaterialWafer
Dip Speedfrom 0.1 mm/sec. to 10 mm/sec
Circulation Device of Coating LiquidEquipped
Temperature Control of Coating LiquidNot Equipped
Filter Mesh0.05um
Drying DeviceNot Equipped
Dry TemperatureNot Equipped
HEPA (High Efficiency Particulate Air Filter) UnitEquipped
Equipment Dimension (mm) [approximate]W:904×D:840×H:1070mm
