WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > Channel Coat Equipment SA-0901
The Product Details

dipcoater with Drying Device

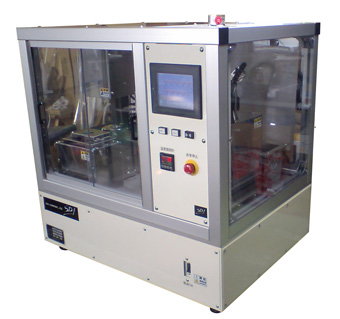

Channel Coat Equipment SA-0901

This is the Desk Top Type dipcoater (Dipping Equipment) to Dip Coat (Dip Coating) with insulating material at both ends of Ceramics Materials formed in hexagon pilaster, then to eliminate surplus liquids stagnant by Air-Blow and burning

Main Specifications
Stroke125mm
Object SizeOpposite Side 11 mm, Height 25 mm
Object MaterialCeramics formed in hexagon pilaster
Dip Speedfrom 0.1 mm/sec. to 40 mm/sec.
Circulation Device of Coating LiquidNot Equipped
Temperature Control of Coating LiquidNot Equipped
Filter MeshNot Equipped
Drying DeviceEquipped
Dry TemperatureMaximum 500 centigrade
HEPA (High Efficiency Particulate Air Filter) UnitNot Equipped
Equipment Dimension (mm) [approximate]W:897×D:603×H:830mm
