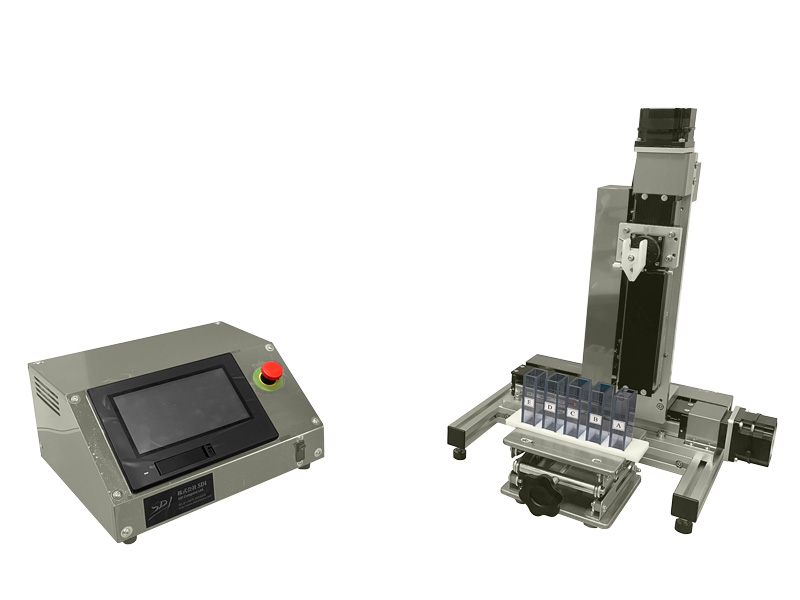

Alternate Dip Coater　OD-2304-N1

Desktop device for experiments / research / development Specifications /

This device is a coating device for immersion treatment in any order in five liquid tanks arranged in the horizontal direction. Coating with different liquids such as alternate adsorption is possible.
Tanks and lab jacks are sold as options.

This is a dip coater capable of dip coating (dip coating) at an ultra-low nano-scale speed (variable in 1 nm increments). It is most suitable for process research of the dip coating method.

Up to 5 tanks can be installed. Dip coating can be done in any order in preset liquid tanks (coating tanks).The processing speed, stop position, and stop time can be easily entered on the touch panel.

Alternating Dip Coater(DD-2304-N1)random_en
Alternating Dip Coater(DD-2304-N1)_en

Main Specifications
Stroke	Z-axis 150mm X-axis 150mm
Minimum Speed (Min.)	1nm/sec
Maximum Speed (Max)	60mm/sec
Operating Method	Touch Panel
Screen Indication Language	Japanese / English
Number of designation points for Transaction Speeds	16 Points
Number of designation points for Stop Positions	16 Points
Number of designation points for Stopping Time	16 Points
Consecutive Driving Mode	Equipped
Manual Driving Mode	Equipped
Number of Memorized Programs	8 Programs
Monitoring Function: Present Speed	Equipped
Monitoring Function: Present Position	Equipped
Residual Time of Monitoring	Equipped
Repetition Driving	Not Equipped
Standard Clip	Material: Polypropylene (PP)
Utility	AC100V,300VA
Maximum Weight Capacity	500g
Maximum Processing Size (mm)	H:150mm
Linear Driving Mode	Not Equipped
Equipment Dimension (mm): not including projections	W:408　D:256　H:509
Control Box Dimension (mm) : not including projections	W:300 D:285 H:163

Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
The numerical value shown in ( ) of Minimum Speed and Maximum Speed columns can be operated by conversion switch.
