WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > Film Coating Equipment DT-1003
The Product Details

dipcoater of Specifications with Clean Environment Zone / with Drying Device

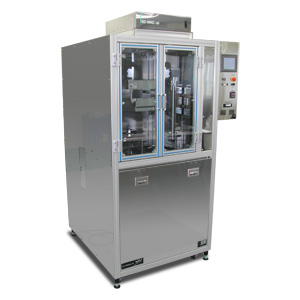

Film Coating Equipment DT-1003

This Equipment is the dipcoater performing the processes automatically for Rinse / Dipping / Drying, which purpose is the Dip Coat (Dip Coating) of the Carbon Materials Water Solution to Plastics Films (such as PET, etc.).

Main Specifications
Stroke 350mm
Object Size A-4 Size
Object Material Plastics Films
Dip Speed from 1 micro m/sec. to 40 mm/sec.
Circulation Device of Coating Liquid Not Equipped
Temperature Control of Coating Liquid Not Equipped
Filter Mesh Not Equipped
Drying Device Equipped
Dry Temperature Maximum 80 centigrade
HEPA (High Efficiency Particulate Air Filter) Unitd Equipped
Equipment Dimension (mm) [approximate] W:1150×D:900×H:2000mm
