WHAT IS THE dipcoater (Dip Coating Equipment)?

It is the mechanism which forms a Thin Film by raising-up the specimen at low speed after dipping in the coating liquid.
HOME > Equipment for Hydrogen Separation Film Generation DT-0412
The Product Details

dipcoater with Drying Device

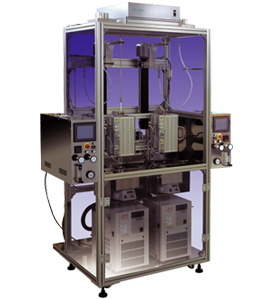

Equipment for Hydrogen Separation Film Generation DT-0412

This Equipment is the dipcoater (Dipping Equipment) purposed for Film Forming Plasticity and Efficiency realizing the mechanization and automation (controlling individually independent in a water system and a non-water system) under water system & non-aqueous / non-oxidative atmosphere condition on the process of making the Hydrogen Separation Film. It will progressively reduce holes diameter of porous on ceramics by repeating Dip Coatings of plural times.

Main Specifications
Stroke110mm
Object Size6 mm Outside Diameter, 100 mm (L)
Object MaterialCeramics
Dip Speedfrom 0.1 mm/sec. to 10 mm/sec.
Circulation Device of Coating LiquidEquipped (Stirrer)
Temperature Control of Coating LiquidEquipped
Filter MeshNot Equipped
Drying DeviceEquipped
Dry TemperatureMaximum 600 centigrade
HEPA (High Efficiency Particulate Air Filter) UnitEquipped
Equipment Dimension (mm) [approximate]W:1400×D:850×H:2185mm
